A203 PU
| ALP NO | DIMENSION | Ød | ØD | b | B |
|---|---|---|---|---|---|
| A203-025 PU | 25X35X10/7 | 25 | 35 | 7 | 10 |
| A203-030 PU | 30X40X10/7 | 30 | 40 | 7 | 10 |
| A203-032/1 PU | 32X42X10/7 | 32 | 42 | 7 | 10 |
| A203-035 PU | 35X45X10/7 | 35 | 45 | 7 | 10 |
| A203-040 PU | 40X50X10/7 | 40 | 50 | 7 | 10 |
| A203-045 PU | 45X55X10/7 | 45 | 55 | 7 | 10 |
| A203-045/1 PU | 45X58X10/7 | 45 | 58 | 7 | 10 |
| A203-050 PU | 50X60X10/7 | 50 | 60 | 7 | 10 |
| A203-060 PU | 60X70X10/7 | 60 | 70 | 7 | 10 |
| A203-065 PU | 65X75X10/7 | 65 | 75 | 7 | 10 |
| A203-070 PU | 70X80X10/7 | 70 | 80 | 7 | 10 |
| A203-080 PU | 80X90X10/7 | 80 | 90 | 7 | 10 |
| A203-090 PU | 90X100X10/7 | 90 | 100 | 7 | 10 |
A203 PU Wipers with metal cases are used in order to prevent foreign particles from entering the system.
Special vulcanization processes are used during production.

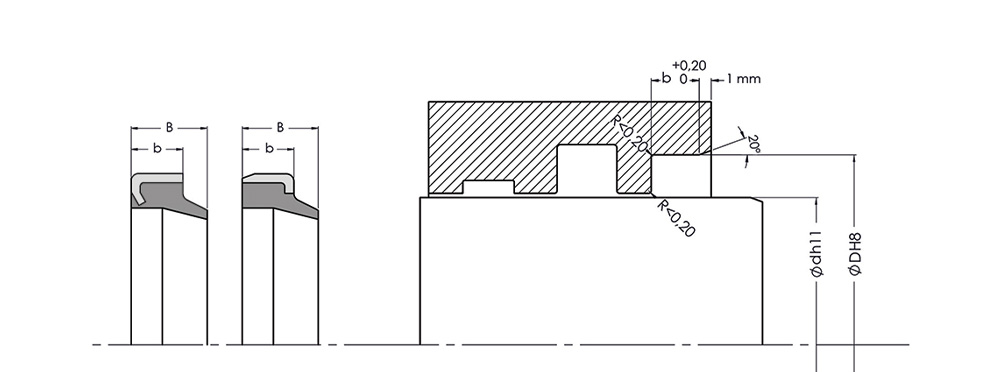

These seals are interference fitted into the groove. Proper tools should be used during assembly, so that seal and grooves will not be damaged.
| TECHNICAL DATA | |
| Working Temperature | -30/ +100°C |
| Sliding Speed | 0.5 m/sn |
| Material | 92 PU / METAL |
| Surface Roughness | ||
| Ra | Rmax | |
| Dynamic Surface | ≤0.4 µm | ≤3.2 µm |
| Groove Base | ≤1.6 µm | ≤10.0 µm |
| Groove Flanks | ≤3.2 µm | ≤16.0 µm |
