A201

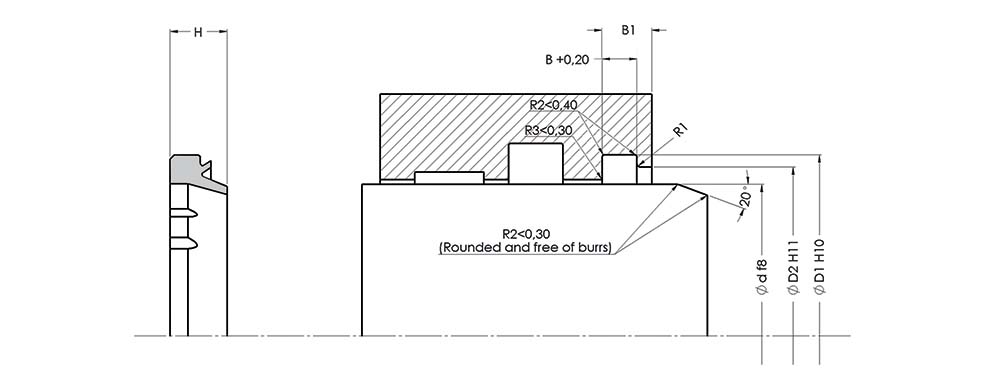

| ALP NO | DIMENSION | Ød | B | ØD1 | ØD2 | H | B1 |
|---|---|---|---|---|---|---|---|
| A201-016 PU | 16X24X7/4 | 16 | 4 | 24 | 22 | 7 | 5 |
| A201-018 PU | 18X26X7/4 | 18 | 4 | 26 | 24 | 7 | 5 |
| A201-020 PU | 20X28X7/4 | 20 | 4 | 28 | 26 | 7 | 5 |
| A201-022 PU | 22X30X7/4 | 22 | 4 | 30 | 28 | 7 | 5 |
| A201-025 PU | 25X33X7/4 | 25 | 4 | 33 | 31 | 7 | 5 |
| A201-028 PU | 28X36X7/4 | 28 | 4 | 36 | 34 | 7 | 5 |
| A201-030 PU | 30X38X7/4 | 30 | 4 | 38 | 36 | 7 | 5 |
| A201-032 PU | 32X40X7/4 | 32 | 4 | 40 | 38 | 7 | 5 |
| A201-035 PU | 35X43X7/4 | 35 | 4 | 43 | 41 | 7 | 5 |
| A201-035/1 PU | 35X45X7/4 | 35 | 4 | 45 | 43 | 7 | 5 |
| A201-036 PU | 36X44X7/4 | 36 | 4 | 44 | 42 | 7 | 5 |
| A201-040 PU | 40X48X7/4 | 40 | 4 | 48 | 46 | 7 | 5 |
| A201-045 PU | 45X53X7/4 | 45 | 4 | 53 | 51 | 7 | 5 |
| A201-050 PU | 50X58X7/4 | 50 | 4 | 58 | 56 | 7 | 5 |
| A201-055 PU | 55X63X7/4 | 55 | 4 | 63 | 61 | 7 | 5 |
| A201-060 PU | 60X68X7/4 | 60 | 4 | 68 | 66 | 7 | 5 |
| A201-065 PU | 65X73X7/4 | 65 | 4 | 73 | 71 | 7 | 5 |
| A201-070 PU | 70X78X7/4 | 70 | 4 | 78 | 76 | 7 | 5 |
| A201-070/1 PU | 70X80X9/6 | 70 | 6,3 | 80 | 77 | 9 | 7 |
| A201-080 PU | 80X88X7/4 | 80 | 4 | 88 | 86 | 7 | 5 |
| A201-090 PU | 90X98X7/4 | 90 | 4 | 98 | 96 | 7 | 5 |
Thanks to their special form, A201 PU Wipers are designed to prevent the entry of unfavourable particles and water into the system of hydraulic cylinders, which function outside.
| TECHNICAL DATA | |
| Working Temperature | -40/+100°C |
| Sliding Speed | 1.00 m/sn |
| Material | 92 PU |
| Surface Roughness | ||
| Ra | Rmax | |
| Dynamic Surface | ≤0.4 μm | ≤3.2 μm |
| Groove Base | ≤1.6 μm | ≤10.0 μm |
| Groove Flanks | ≤3.2 μm | ≤16.0 μm |
