A117

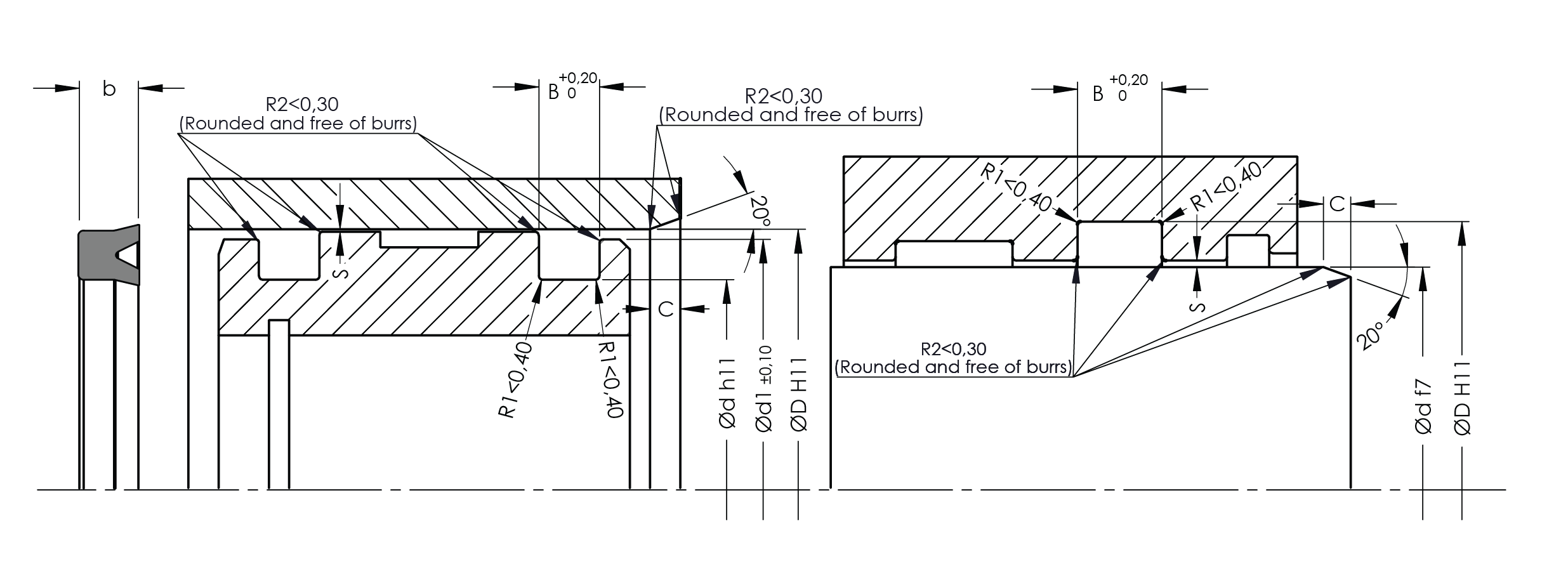

| ALP NO | DIMENSION | Ød | ØD | b | B | C | Ød1 |
|---|---|---|---|---|---|---|---|
| A117-003 | 3X7X5 | 3 | 7 | 5 | 6 | 2 | 6 |
| A117-004 | 4X10X4 | 4 | 10 | 4 | 4,5 | 3 | 9 |
| A117-006 | 6X12X4 | 6 | 12 | 4 | 4,5 | 3 | 11 |
| A117-006/1 | 6X15X5 | 6 | 15 | 5 | 6 | 4 | 14 |
| A117-010 | 10X18X5 | 10 | 18 | 5 | 6 | 4 | 17 |
| A117-010/1 | 10X18X6 | 10 | 18 | 6 | 7 | 4 | 17 |
| A117-010/2 | 10X14X2 | 10 | 14 | 2 | 2,5 | 2 | 13 |
| A117-012 | 12X18X4 | 12 | 18 | 4 | 4,5 | 3 | 17 |
| A117-014 | 14X20X4 | 14 | 20 | 4 | 4,5 | 3 | 19 |
| A117-014/1 | 14X20X4,8 | 14 | 20 | 4,8 | 5,3 | 3 | 19 |
| A117-020 | 20X30X8 | 20 | 30 | 8 | 9 | 4,5 | 28,5 |
| A117-035 | 35X50X10 | 35 | 50 | 10 | 11 | 5,5 | 46 |
| A117-048 | 48X63X9 | 48 | 63 | 9 | 10 | 5,5 | 61,5 |
| A117-061 | 61X73X6 | 61 | 73 | 6 | 7 | 4,5 | 71,5 |
| A117-065 | 65X80X9 | 65 | 80 | 9 | 10 | 5,5 | 78,5 |
| A117-070 | 70X85X9 | 70 | 85 | 9 | 10 | 5,5 | 81 |
| A117-075 | 75X90X7,5 | 75 | 90 | 7,5 | 8,5 | 5,5 | 84 |
| A117-110 | 110X140X15 | 110 | 140 | 15 | 16 | 7 | 136 |
| A117-180 | 180X200X10 | 180 | 200 | 10 | 11 | 6 | 194 |

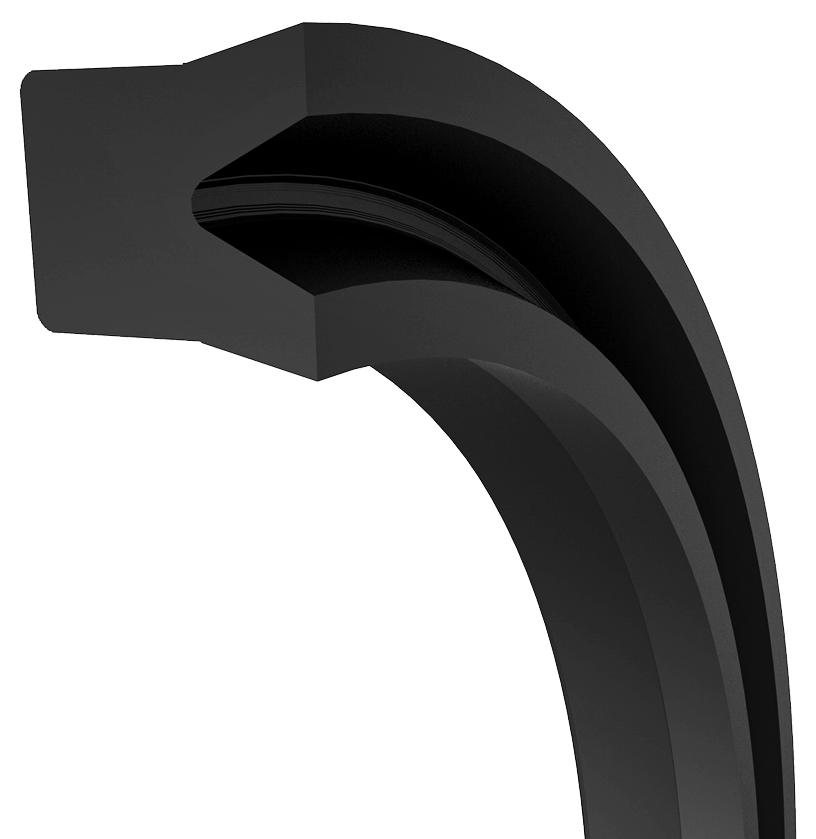

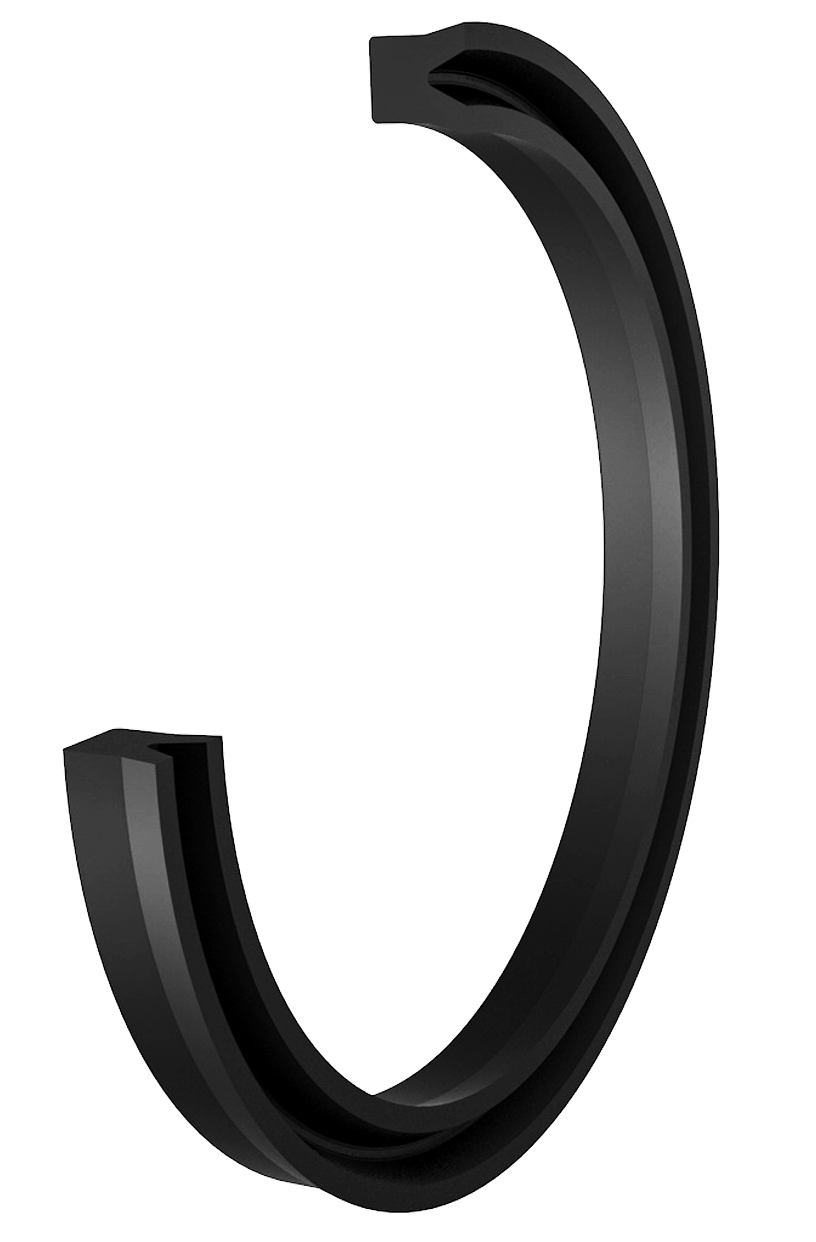

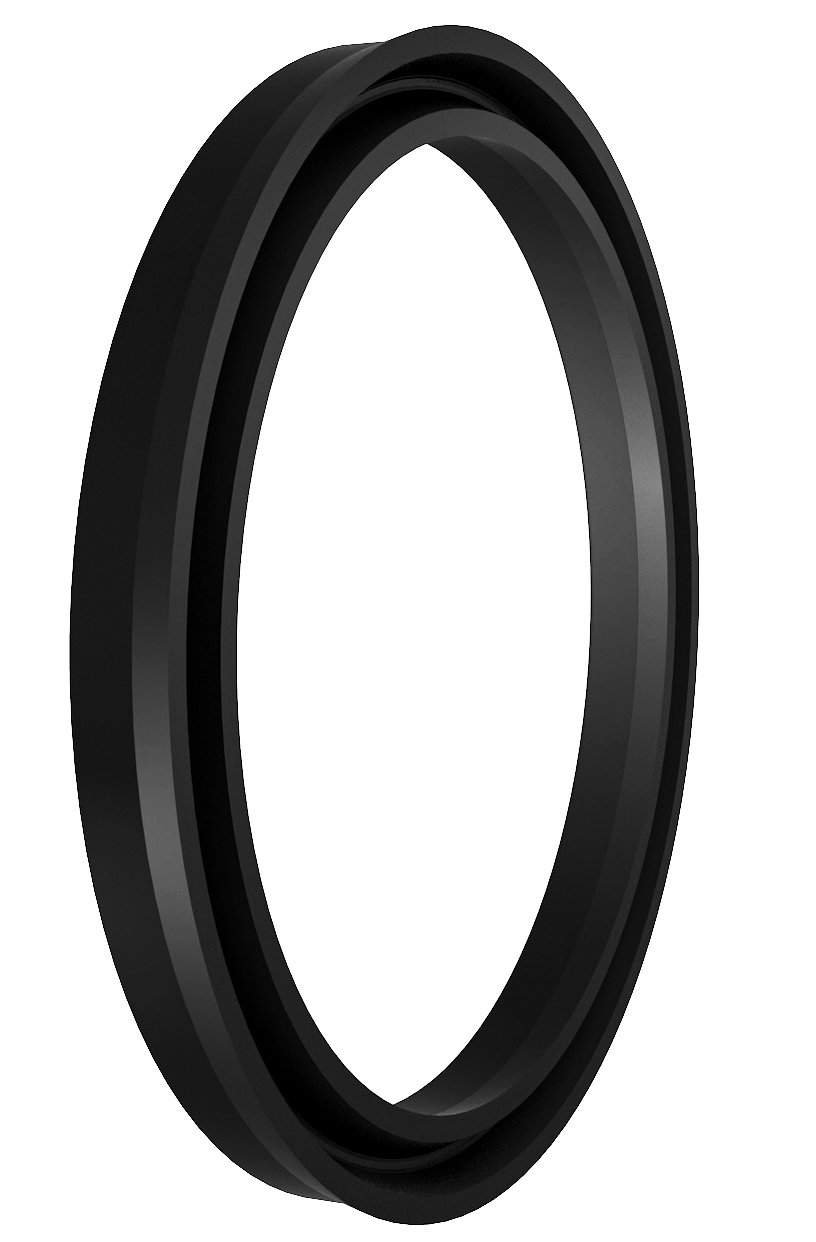

A117 Piston-Rod Seal is a sealing element designed for use in both piston and rod applications, featuring a straıght profile and a symmetrical lip design. It is manufactured as standard in NBR material.
| TECHNICAL DATA | |
| Working Pressure | 160 Bar |
| Working Temperature | -30/+105°C |
| Sliding Speed | 0.5 m/sn |
| Material | 90 NBR |
| Media | Mineral Base Hydraulic Oil |
| Surface Roughness | ||
| Ra | Rmax | |
| Dynamic Surface | ≤0.3 μm | ≤3.0 μm |
| Groove Base | ≤1.8 μm | ≤10.0 μm |
| Groove Flanks | ≤3.2 μm | ≤16.0 μm |
| Permissible Gap (max.) for NBR | |||
| Cross Section | Pressure (Bar) | ||
| 50 | 100 | 160 | |
| ≤5 | 0.40 | 0.20 | 0.10 |
| >5 | 0.45 | 0.25 | 0.1 |
